Atlas Copco 3"Inch 4"Inch 5"Inch 6"Inch 8"Inch 10" Inch 12" Inch DTH Hammers

Name: Atlas Copco 3"Inch 4"Inch 5"Inch 6"Inch 8"Inch 10" Inch 12" Inch DTH Hammers
Brand: Changsha Sollroc Engineering Equipments Co., Ltd
Price: 500 USD
Availability: InStock

Semua produk

Alat Pengeboran DTH
(127)

Down The Hole Hammer
(182)

Mata Bor DTH
(213)

PIPA BOR DTH
(58)

Palu sirkulasi terbalik
(138)

RC Drill Bit
(135)

Sistem Pengeboran Overload Symmetrix
(8)

Pipa Pengeboran RC Dual Wall
(21)

sistem pengeboran odex
(27)

Seret Mata Bor
(49)

Alat pengeboran dengan palu atas
(64)

Potongan-potongan Tombol yang Meruncing
(12)

Alat pengeboran inti berlian
(12)

Button Bit Grinder
(12)

mata bor tricone
(18)

Sertifikasi

Ulasan pelanggan

Saya menerima palu dan bit saya, mereka terlihat luar biasa, mereka berkinerja baik setelah kita menggunakannya, terima kasih banyak.

—— John Lewis

Saya akan merekomendasikan produk perusahaan ini 110% karena di masa lalu saya telah memiliki hasil yang baik 100% dari mereka.

—— Vesa Vaatanen

I 'm Online Chat Now

Atlas Copco 3"Inch 4"Inch 5"Inch 6"Inch 8"Inch 10" Inch 12" Inch DTH Hammers

Gambar besar : Atlas Copco 3"Inch 4"Inch 5"Inch 6"Inch 8"Inch 10" Inch 12" Inch DTH Hammers

Detail produk: Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	500

Kontak

Atlas Copco 3"Inch 4"Inch 5"Inch 6"Inch 8"Inch 10" Inch 12" Inch DTH Hammers

Deskripsi

Model TIDAK.:	DHD, COP, SD, QL, Misi, Br, Numa,	Warna:	sebagai Permintaan
Kuantitas:	Jumlah Kecil Dapat Diterima	Paket Transportasi:	Kasus ply-wooden untuk mengekspor
Spesifikasi:	kelas A	Merek dagang:	SOLLROC
Asal:	Changsha, Hunan	Kode HS:	84314320
Kapasitas Produksi:	Cina

Atlas Copco 3"Inch 4"Inch 5"Inch 6"Inch 8"Inch 10" Inch 12" Inch DTH hammers

DTH hammers without footvalve can be available.

Different out diameters of out cylinder can be available.

DTH bits 60mm-381mm for above hammers can be available.

Products specifications:

Hammers	Bit Shank	Connection Thread	Suitable bit	Working pressure	Air consumption

1-3" Middle-low pressure DTH hammers	BR1 BR2 BR3	RD40 box RD50 box API 2 3/8" Reg	¢64-¢76mm ¢70-¢90mm ¢90-¢110mm	0.7-1.75Mpa 0.7-1.75Mpa 0.7-1.75Mpa	0.7Mpa	4.5m3/min
					1.0Mpa	4m3/min
					1.4Mpa	5m3/min
3" hammers	DHD3.5 COP32/COP34 M30	API 2 3/8"Reg	¢90-¢110mm	1.0-1.5Mpa	1.0Mpa	4.5m3/min
					1.5Mpa	9m3/min
4" hammers	DHD340 COP44 QL40 SD4 M40	API 2 3/8"Reg	¢105-¢130mm	1.0-2.5Mpa	1.0Mpa	6m3/min
					1.8Mpa	10m3/min
					2.4Mpa	15m3/min
5" hammers	DHD350 COP54 QL50 SD5 M50	API 2 3/8"Reg/API 3 1/2"Reg	¢130-¢156mm	1.0-2.5Mpa	1.0Mpa	9m3/min
					1.8Mpa	15m3/min
					2.4Mpa	23m3/min
6" hammers	DHD360 COP64 QL60 SD6 M60	API 3 1/2"Reg	¢152-¢203mm	1.0-2.5Mpa	1.0Mpa	10m3/min
					1.8Mpa	20m3/min
					2.4Mpa	28.5m3/min
8" hammers	DHD380 COP84 QL80 SD8	API 4 1/2"Reg	¢200-¢279mm	1.0-2.5Mpa	1.0Mpa	15m3/min
					1.8Mpa	26m3/min
					2.4Mpa	34m3/min
10" hammers	SD10 NUMA100	API 6 5/8"Reg	¢254-¢330mm	1.0-2.5Mpa	1.0Mpa	22m3/min
					1.8Mpa	40m3/min
					2.4Mpa	55m3/min
12" hammers	DHD1120 SD12 NUMA120 NUMA125	API 6 5/8"Reg	¢305-¢381mm	1.0-2.5Mpa	1.0Mpa	30m3/min
					1.8Mpa	56m3/min
					2.4Mpa	78m3/min

About us:

We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customer all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.

We can provide specifications:
DTH hammers and bits range:
3" DTH hammer shanks : DHD 3.5, COP 34, COP 32, Mission 30, BR 3, Mach 303; bits (90mm - 105mm)
4" DTH hammer shanks: DHD 340/COP 44, COP 42, QL 40, SD 4, Mission 40; bits (105mm- 130mm)
5" DTH hammer shanks: DHD 350/COP 54, COP 52, QL 50, SD 5, Mission 50; bits (130mm- 165mm)
6" DTH hammer shanks: DHD 360/ COP 64, COP 62, QL 60, SD 6, Mission 60; bits (152mm- 203mm)
8" DTH hammer shanks: DHD380, QL 80, SD 8, Mission 80; bits (200mm- 305mm)
10"DTH hammer shanks: SD10,Numa100; bits(254mm-330mm)
12"DTH hammer shanks: DHD1120,SD12,Numa120,Numa125; bits(305mm-600mm)
DTH opener bits: 4"-10" from 82/165mm to 445/660mm

RC hammer and bits:
1). 4'' RC hammers and bits: RE004/RE004R; RE542
2). 5'' RC hammers and bits:RE543,RE545,RE547;PR40,PR52,PR54; MX5456
3). 6'' RC hammers and bits: RC62/RC62R;
4). 8'' RC hammers and bits: RC82/RC82R;
5). 10'' RC hammers and bits: RC100/RC100R.
Connection thread specifaction:
1). Remet series: 3 1/2'',4'' ,4 1/2'' ;
2). Metzke series: 3 1/2", 4'', 4 1/2'' ;

DTH drill rod:
Diameter: 76mm, 89mm, 102mm, 114mm, 127mm, 140mm, 152mm
Thread: API 2 3/8"reg, API 3 1/2" reg, API 4 1/2" reg
Length: 1m, 2m, 3m, 4m, 5m, 6m.

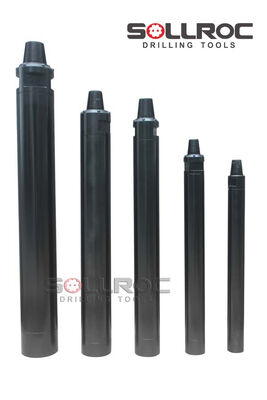

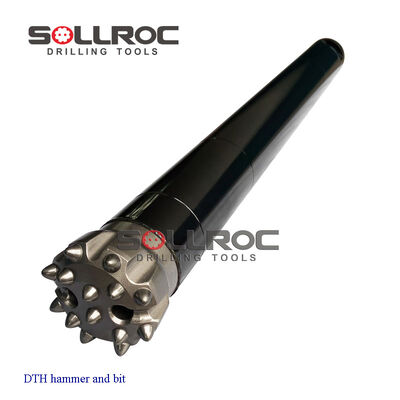

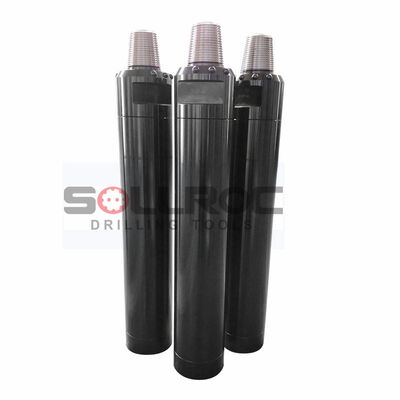

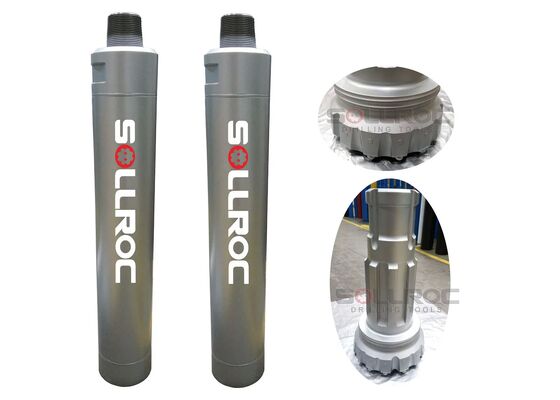

Products photoes
