Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range

Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range
Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range

Gambar besar :  Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range

Detail produk:
Tempat asal: Hunan, Cina
Nama merek: SOLLROC
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $1,500
Kontak

Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range

Deskripsi
Berat: 84 kg Bahan: Baja karbon
Jenis pemrosesan: Penempaan Ukuran: OD81MM ke OD146mm
Utas koneksi: Remet dan Metzke Thread Bit range: 84mm (3.3inch) -152mm (6 inci)
Collaring Bit Dia.: 165mm (6.5 inci) -210mm (8.3inch) Pemilihan wajah: Drop center, pembentukan keras, cekung
Diameter eksternal: 81mm hingga 146mm Panjang: 1069mm hingga 1362mm
Tekanan kerja: 1.0-3.5mpa Rentang lubang: 84mm hingga 190mm
Konfigurasi tombol: dapat disesuaikan Bentuk kepala bit: Berbagai pilihan
Desain Shank: Dapat dipertukarkan
Menyoroti:

OD81mm to OD146mm RC Hammer

,

84mm to 152mm Bit Range Reverse Circulation Hammer

,

165mm to 210mm Collaring Bit Dia. Range Drill Hammer

Reverse Circulation RC Hammer for Exploration and Grade Control Drilling
High-performance reverse circulation RC hammer designed for precision exploration and grade control in drilling operations.
SOLLROC RC Hammer Features
  • Premium quality spare parts with carburized treatment for superior wear resistance
  • Excellent penetration rates and durability in demanding conditions
  • Customizable bit head shapes, button configurations, and button shapes
  • Adaptable to various rock formations and drilling requirements
  • Interchangeable shank design compatible with leading brands for inventory optimization
Technical Specifications
Hammer Model Hole Range (mm) External Diameter (mm) Length (without bit, mm) Connection Thread Working Pressure
SRC531 84-105 81 1069 3" Remet 1.0-3.0Mpa
SRC004 115-127 107 1252 3.5-4" Remet
4" Metzke		 1.0-3.0Mpa
SRC542 121-146 109.5 1191 3.5-4" Remet
4" Metzke		 1.0-3.0Mpa
SRC543 121-146 116 1191 3.5-4 Remet
4" Metzke		 1.0-3.0Mpa
SRC545 130-146 117.5 1261 4-4.5" Remet
4-4.5" Metzke		 1.5-3.5Mpa
SRC547 133-146 124.5 1270 4.5" Remet
4.5" Metzke		 1.5-3.5Mpa
SRC040 121-146 120.5 1362 3.5-4.5" Remet
3.5-4.5" Metzke		 1.5-3.5Mpa
SRC052 133-152 121 1227 4-4.5" Remet
4-4.5" Metzke		 1.5-3.5Mpa
SRC052R 133-152 124 1225 4-4.5" Remet
4-4.5" Metzke		 1.5-3.5Mpa
SRC054 135-152 130 1294 4.5" Remet
4.5" Metzke		 1.5-3.5Mpa
SRCMX5456 136-152 132 1362 4.5" Remet
4.5" Metzke		 1.5-3.5Mpa
SRC060 152-190 146 1320 As Request 1.5-3.5Mpa
RC Bit Sizes
  • 86mm - 102mm for 3" RC hammer SRC531
  • 114mm - 127mm for 4" RC hammer SRC004
  • 121mm - 133mm for 4.5" RC hammer SRC542/SRC543
  • 124mm - 138mm for 5" RC hammer SRC545/SRC040
  • 133mm - 146mm for 5.5" RC hammer SRC052/SRC547/SRC054/SRCMX5456
We customize button number, configuration, and diameter to optimize performance and reduce drilling costs based on your specific rock formation conditions.
Product Images

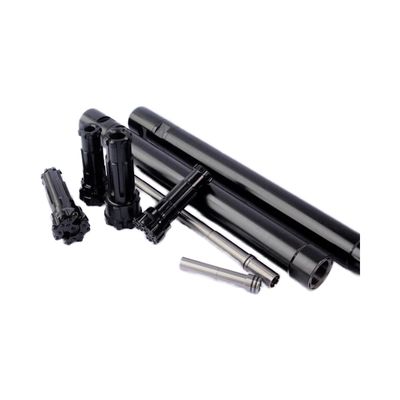

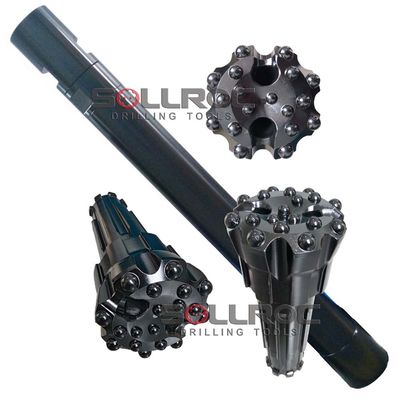

Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range 0
Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range 1
Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range 2
Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range 3
Packaging
Products are securely packaged in ply-wooden cases and pallets to prevent damage during transportation. Custom packaging solutions available upon request.
Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range 4
Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range 5
