High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control

High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control
High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control

Gambar besar :  High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control

Detail produk:
Tempat asal: Hunan, Cina
Nama merek: SOLLROC
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $1,000
Kontak

High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control

Deskripsi
Berat: 84 kg Bahan: Baja mangan tinggi
Jenis pemrosesan: Penempaan ukuran palu: 3-5.5 inci
Diameter palu: 3.19 "hingga 5.75" Bit range: 3.3 "hingga 8.27"
Jenis Thread: Metzke/Remet Rentang lubang: 84-190mm
Diameter eksternal: 81-146mm Panjang: 1069-1362mm
Utas koneksi: Remet/Metzke 3 "hingga 4,5" Tekanan kerja: 1.0-3.5mpa
Ukuran Bit RC: 86mm-152mm Konfigurasi tombol: Bisa disesuaikan
Kedalaman pengeboran: Lubang dalam yang mampu
Menyoroti:

High Manganese Steel RC Hammer

,

3-5.5inch RC Hammer

,

Exploration Drilling RC Hammer

SOLLROC RC Hammers and Drilling Bits for Exploration and Grade Control
Applications
RC hammers and bits are designed for hole drilling in mines, hydrology and water wells, geothermal wells, geothermal air conditioning wells, and geologic exploration. They are especially suitable for complicated formations including loose, difficult-to-drill strata and unstable hole walls, providing excellent performance in deep hole drilling while maintaining environmental protection standards.
Key Features
  • Manufactured using premium hardened metals for extended service life
  • Maximum material recovery rate up to 98%
  • Eliminates cross-contamination of samples
  • Maintains performance with injection of water, foam, oil, and polymers
  • Optimized for maximum drilling efficiency underwater
RC Hammer Specifications
Hammer Model Hole Range (mm) External Diameter (mm) Length (without bit) (mm) Connection Thread Working Pressure
SRC531 84-105 81 1069 3" Remet 1.0-3.0Mpa
SRC004 115-127 107 1252 3.5-4" Remet 4" Metzke 1.0-3.0Mpa
SRC542 121-146 109.5 1191 3.5-4" Remet 4" Metzke 1.0-3.0Mpa
SRC543 121-146 116 1191 3.5-4 Remet 4" Metzke 1.0-3.0Mpa
SRC545 130-146 117.5 1261 4-4.5" Remet 4-4.5" Metzke 1.5-3.5Mpa
SRC547 133-146 124.5 1270 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
SRC040 121-146 120.5 1362 3.5-4.5" Remet 3.5-4.5" Metzke 1.5-3.5Mpa
SRC052 133-152 121 1227 4-4.5" Remet 4-4.5" Metzke 1.5-3.5Mpa
SRC052R 133-152 124 1225 4-4.5" Remet 4-4.5" Metzke 1.5-3.5Mpa
SRC054 135-152 130 1294 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
SRCMX5456 136-152 132 1362 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
SRC060 152-190 146 1320 As Request 1.5-3.5Mpa
RC Bits Sizes
  • 86mm -102mm for 3" RC hammer RE531
  • 114mm -127mm for 4" RC hammer RE004
  • 121mm -133mm for 4.5" RC hammer RE542/RE543
  • 124mm - 138mm for 5" RC hammer RE545/PR40
  • 133mm - 146mm for 5.5" RC hammer PR52/RE547/PR54/MX5456
We customize button number, configuration, and diameter to optimize performance and reduce drilling costs based on your specific rock formation conditions.
Product Images

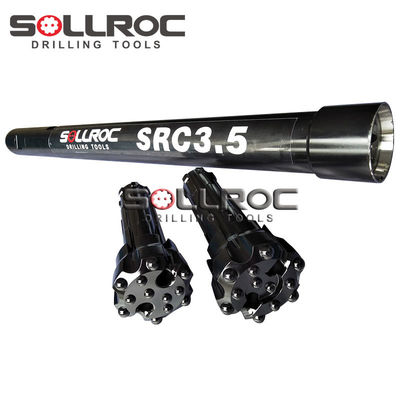

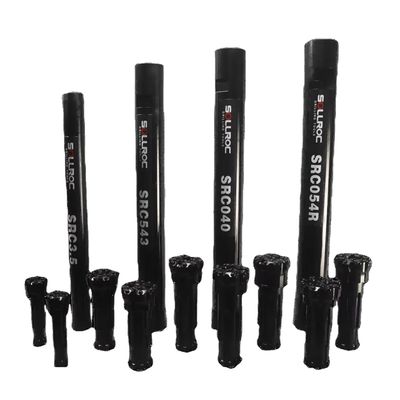

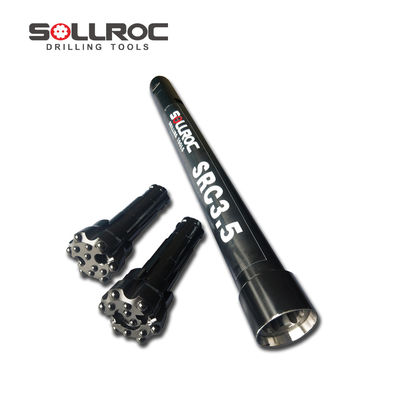

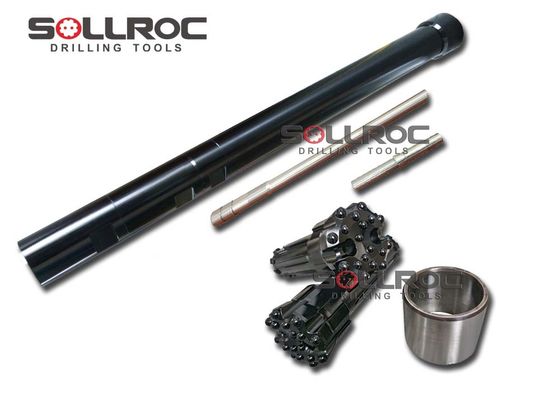

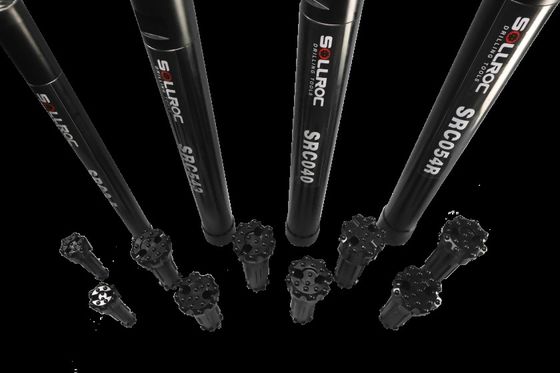

High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control 0 High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control 1 High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control 2 High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control 3 High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control 4 High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control 5
Packing & Delivery
Packed in ply-wooden cases with pallet.
Delivery time: 2-3 weeks to departure port.
High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control 6
