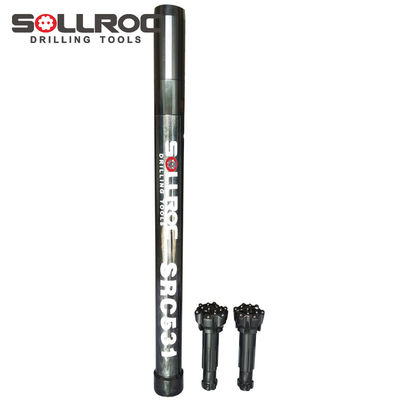

High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range

High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range
High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range

Gambar besar :  High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range

Detail produk:
Tempat asal: Hunan, Cina
Nama merek: SOLLROC
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $1,500
Kontak

High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range

Deskripsi
Berat: 55.0kg ukuran palu: 4,5 inci
Diameter eksternal: 109,5mm Panjang: 1191mm
Rentang lubang: 113mm-130mm Bahan: Baja karburasi
Betis sedikit: SRC542 Utas koneksi: 3.5 ''/4''remet 4''metzke
Tekanan kerja: 1.5-3.5Mpa Tingkat dampak: 35HZ
Kecepatan rotasi: 25-40r/menit Konsumsi Udara: 12m³/mnt, 18m³/mnt, 26m³/mnt
Jenis: Palu Jenis mesin: Peralatan pengeboran
Benang: Metzke/ Remet
Menyoroti:

4.5inch Hammer Size DTH Hammer

,

113mm-130mm Hole Range Reverse Circulation Hammer

,

55.0kg Weight Down The Hole Hammer

High Air Pressure RC Reverse Circulation Hammer SRC542
Reverse circulation drilling is similar to air core drilling, with the key advantage that samples are transported through the hollow pipe of the machine rather than being exposed to surface contamination. This method ensures sample integrity for accurate geological analysis.
Key Advantages
  • Reduces overall drilling costs by up to 40% compared to conventional methods
  • Delivers faster results with rapid completion of drilling operations
  • Enhanced safety with reduced manpower requirements
  • Lower water consumption than alternative mining methods
  • Simple and efficient operation process
  • Precise sample organization with depth and location tracking for accurate mineral deposit identification
Technical Specifications
Length (less bit) Weight (less bit) External Diameter Bit Shank Hole Range Connection Thread
1191mm 57.0kg 109.5mm SRC542 113-130 3.5''/4''Remet 4''Metzke
Working Pressure Impact Rate at 2.4Mpa Recommended Rotation Speed Air Consumption
1.5-3.5Mpa 35HZ 25-40r/min 1.7Mpa: 12m³/min 2.4Mpa: 18m³/min 3.0Mpa: 26m³/min
Packaging Options
• Ply-wooden cases
• Ply-wooden cases + Pallet
High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range 0 High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range 1
Delivery Methods
• By air
• By sea
• By Express
High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range 2 High Air Pressure Reverse Circulation DTH Hammer with 4.5inch Hammer Size and 113mm-130mm Hole Range 3
