SRC531 3inch 81mm Reverse Circulation RC Hammer for High Performance Well Drilling

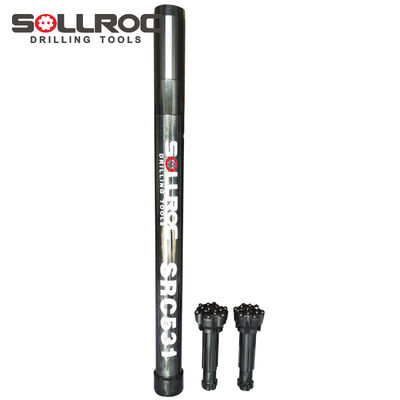

Gambar besar : SRC531 3inch 81mm Reverse Circulation RC Hammer for High Performance Well Drilling

Detail produk:

Tempat asal:	Hunan, Cina
Nama merek:	Sollroc

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	$1,500

Kontak

SRC531 3inch 81mm Reverse Circulation RC Hammer for High Performance Well Drilling

Deskripsi

Berat:	29 kg	Bahan:	Baja karbon
Jenis pemrosesan:	Penempaan	Ukuran:	3 INCI
Diameter luar:	81 mm	Panjang:	1063 mm
Bentuk tombol:	Balistik/semi-balistik/bulat	Betis sedikit:	SRC531
Rentang lubang:	φ84-φ100	Utas koneksi:	"Remet"
Tekanan kerja:	1.0MPa-3.0MPa	Konsumsi Udara:	7 m³/mnt @ 1,7 MPa
Konsumsi Udara:	10 m³/mnt @ 2,4 MPa	Konsumsi Udara:	14 m³/mnt @ 3.0 MPa
Panjang (lebih sedikit bit):	1069 mm
Menyoroti:	SRC531 RC Hammer , 3inch Reverse Circulation Hammer , 81mm Down The Hole Hammer

Sollroc Reverse Circulation SRC531 RC Hammers for Mining Well Drilling

Product Overview

Reverse circulation drilling efficiently collects samples by transporting them through hollow pipes, preventing contamination from surface materials. This method is particularly valuable for maintaining sample integrity in mining and well drilling applications.

Technical Specifications

Length (less bit)	1069mm
Weight (less bit)	29.0kg
External diameter	φ81mm
Bit shank	SRC531
Hole range	φ84-φ100
Connection thread	3" Remet
Working pressure	1.0Mpa-3.0Mpa
Air consumption (1.7 Mpa)	7 m³/min
Air consumption (2.4 Mpa)	10 m³/min
Air consumption (3.0 Mpa)	14 m³/min

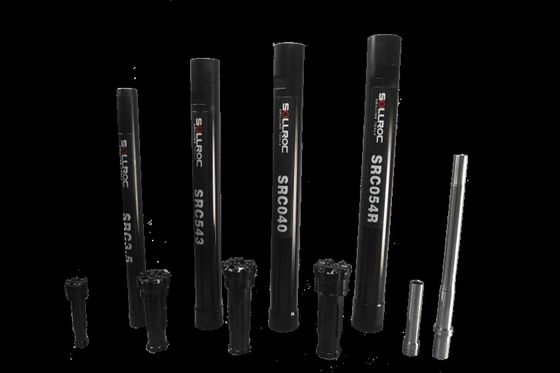

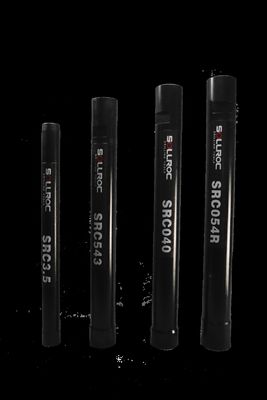

Product Images

Delivery Information

Standard delivery time: 15-25 days. Express delivery (3-5 days) available when items are in stock.

Shipping & Packaging

Shipping options: By Air, By Sea, or By express.

Packaging: Ply-wooden cases with pallet.
