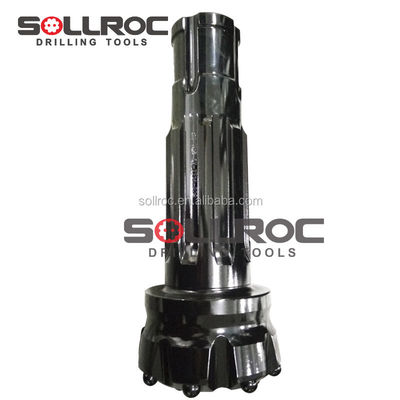

110mm DTH Drill Bits with Carburized Steel Construction for Flat and Convex Face Drilling

Gambar besar : 110mm DTH Drill Bits with Carburized Steel Construction for Flat and Convex Face Drilling

Detail produk:

Tempat asal:	Hunan, Cina
Nama merek:	SOLLROC
Sertifikasi:	ISO:9001

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	$150

Kontak

110mm DTH Drill Bits with Carburized Steel Construction for Flat and Convex Face Drilling

Deskripsi

Diameter:	110mm	Berat:	10 kg
Bahan:	Baja karburasi	Jenis pemrosesan:	Penempaan
Bentuk wajah:	Datar, Cembung, Cekung	Jenis tombol:	Bulat, parabola, balistik
Sedikit Dia:	105, 110, 115, 120, 125, 130mm	Selang udara:	2
Tombol pengukur:	6×φ14, 7×φ14, 8×φ14	Tombol Depan:	5×φ13, 6×φ13, 7×φ13, 7×φ14
Bagian no:	HD45-105, HD45-110, HD45-115, HD45-120, HD45-125, HD45-130	Kekerasan batu:	200-260 MPa
Tipe betis:	SD4	Bit Dia (inci):	4 1/8", 4 5/16", 4 1/2", 4 3/4", 4 15/16", 5 1/8"
Masukkan Jenis:	Tungsten Carbide
Menyoroti:	Carburized Steel DTH Drill Bits , Flat Face DTH Drill Bits , Convex Face DTH Drill Bits

QL40 110mm DTH Drill Bits - 4inch DTH Drilling Tool for Mining and Well Drilling

Product Features

Button bit features high wear resistance for medium-hard to hard abrasive rock formations (200-260 Mpa compressive strength)

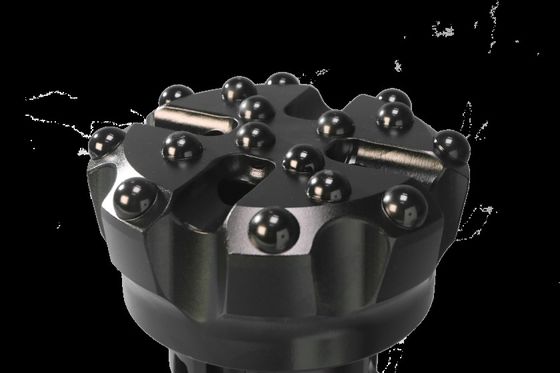

Spherical tungsten carbide inserts provide strong configuration against carbide fracture
Effectively eliminates hole deviation
Ideal for drifting and tunneling applications
Optimized bit face design for medium-hard to hard abrasive rock

Product Applications

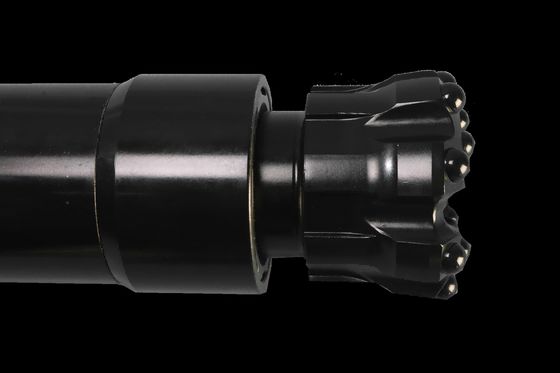

DTH hammers and bits are widely used in underground mining, quarries, hydraulic and hydro-power engineering, water well drilling, mineral exploration, anchoring hole drilling, geothermal engineering, subway excavation, and other civil engineering projects.

Key advantages include high flatness, smooth hole walls, rigid drill rod and hammer construction, independent of high axial thrust, unlimited drilling depth capability, low device costs, and easy maintenance.

Product Specifications

4" Shank Bits	Bit Dia (mm)	Bit Dia (inch)	Air Hose	Gauge Buttons	Front Buttons	Part No
SD4	105	4 1/8"	2	6×φ14	5×φ13	HD45-105
SD4	110	4 5/16"	2	7×φ14	6×φ13	HD45-110
SD4	115	4 1/2"	2	7×φ14	7×φ13	HD45-115
SD4	120	4 3/4"	2	8×φ14	7×φ13	HD45-120
SD4	125	4 15/16"	2	8×φ14	7×φ13	HD45-125
SD4	130	5 1/8"	2	8×φ14	7×φ14	HD45-130
