DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight

DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight
DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight

Gambar besar :  DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight

Detail produk:
Tempat asal: Hunan, Tiongkok
Nama merek: SOLLROC
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $70
Kontak

DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight

Deskripsi
Berat: 4,2 Kg Bahan: Baja karburasi
Jenis pemrosesan: perlakuan panas dan proses pemesinan Diameter bit: 85mm (3 11/32")
lubang udara: 2 Tombol pengukur: 6×φ13
Tombol Depan: 4×φ12 Tipe betis: DHD3.5/COP34
Nomor Bagian: DHD35-85 ukuran palu: 3"
Tipe bit: dth bit Metode pengeboran: Pengeboran DTH
Media Pembilasan: udara atau cairan bertekanan Mekanisme Dampak: serangan piston langsung
Sistem Bimbingan: selubung palu
Menyoroti:

DHD3.5/COP34 DTH Drill Bits

,

4.2 KG Weight Down the Hole Bits

,

Heat Treatment DTH Button Bits

Down the Hole Bits/DHD3.5/COP34/3 Inch Dth Bit for Water Well Drilling
Product Description
In DTH drilling, the percussion mechanism (hammer) is located directly behind the drill bit. The drill pipes transmit feed force, rotation, and compressed air/fluids to the hammer while flushing cuttings. As the hole deepens, additional drill pipes are added to the string behind the hammer. The piston strikes the bit's impact surface directly, with the hammer casing providing stable guidance. This direct energy transfer eliminates joint losses, enabling deeper percussion drilling - a breakthrough for portable water well drilling rigs that can now achieve results comparable to larger truck-mounted rigs.
Technical Specifications
DTH Bits Shank Bit Dia. No. Air Holes Gauge Buttons Front Buttons Weight (Kg) Part No.
DHD3.5/COP34 85mm (3 11/32") 2 6×φ13 4×φ12 4.2 DHD35-85
90mm (3 1/2") 2 6×φ14 4×φ12 4.5 DHD35-90
95mm (3 3/4") 2 6×φ14 4×φ13 4.8 DHD35-95
100mm (3 7/8") 2 8×φ12 6×φ12 5.0 DHD35-100
105mm (4 1/8") 2 8×φ13 6×φ12 5.5 DHD35-105

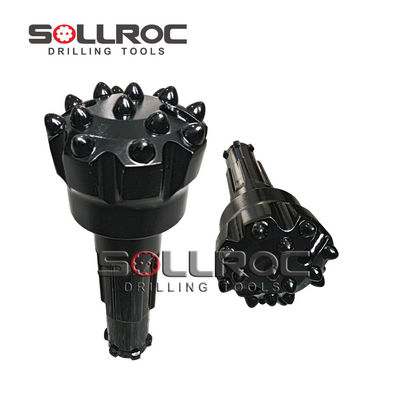

Product Images
DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight 0
Shipping & Packaging
Shipping Methods:
  • By Air
  • By Sea
  • By Express
Packaging: Ply-wooden cases + Pallet
DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight 1 DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight 2
Related Products
DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight 3 DTH Hammers
DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight 4 DTH Bits
DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight 5 RC Hammers
DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight 6 RC Bits
DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight 7 Button Bits
DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight 8 ODEX System
